| Title | Specification | Brand | Coding |

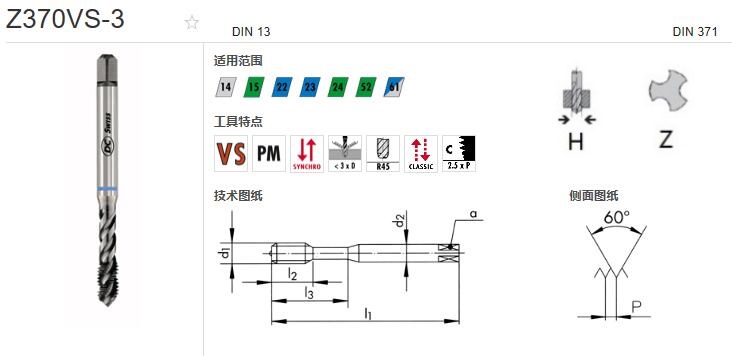

| STAINLESS EG UNF5/16-24 3B | Z370VS-3 EG UNF5/16-24 3B | 瑞士DC | 165131 |
| d1 | P | l1 | l2 | l3 | a | d2 | H | Z |
| 9.31 | 1.058 | 90 | 12.5 | 35 | 6.2 | 8.0 | 8.20 | 3 |
| name | d1 | P | l1 | l2 | l3 | a | d2 | H | Z |
| Z470VS-3 M24 6HX | M24 | 3.00 | 160 | 27.0 | 12.0 | 16.0 | 21.00 | 4 | |
| Z462V-3 UNC1-8 2B | 25.4 | 3.175 | 160 | 27.0 | 14.5 | 18.0 | 22.30 | 4 | |
| STAINLESS EG UNF1/4-28 3B | 7.52 | 0.907 | 90 | 12.5 | 35 | 6.2 | 8.0 | 6.65 | 3 |
| STAINLESS EG UNF10-32 3B | 5.85 | 0.794 | 80 | 11.0 | 30 | 4.9 | 6.0 | 5.10 | 3 |
| STAINLESS EG UNC8-32 3B | 5.19 | 0.794 | 70 | 9.0 | 25 | 4.9 | 6.0 | 4.45 | 3 |
| STAINLESS EG UNC6-32 3B | 4.54 | 0.794 | 70 | 9.0 | 25 | 4.9 | 6.0 | 3.75 | 3 |
| STAINLESS EG UNC4-40 3B | 3.67 | 0.635 | 56 | 6.5 | 20 | 3.0 | 4.0 | 3.05 | 3 |
| STAINLESS G1/2-14 | 20.95 | 1.814 | 125 | 20.0 | 12.0 | 16.0 | 18.90 | 4 | |
| STAINLESS G3/8-19 | 16.66 | 1.337 | 110 | 18.0 | 9.0 | 12.0 | 15.20 | 4 |
