| Title | Specification | Brand | Coding |

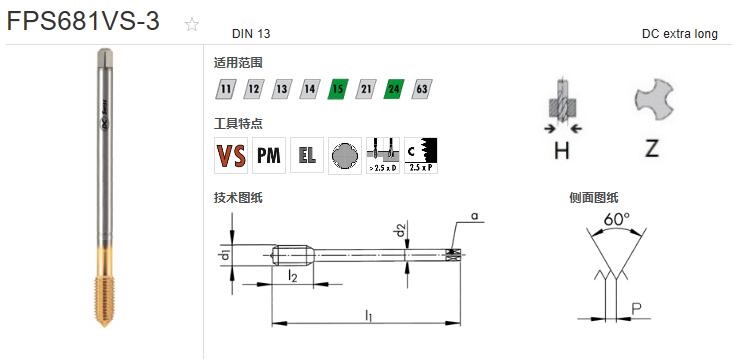

| FPS FORMING M12 6HX - EL | FPS681VS-3 M12 6HX | 瑞士DC | 172836 |
| d1 | P | l1 | l2 | l3 | a | d2 | H | Z |
| M12 | 1.75 | 224 | 24.0 | 7.0 | 9.0 | 11.2 | 5 |
| name | d1 | P | l1 | l2 | l3 | a | d2 | H | Z |
| FPS FORMING G1/2 | 20.96 | 1.814 | 125 | 22.0 | 12.0 | 16.0 | 20.00 | 7 | |
| FPS FORMING G3/8 | 16.66 | 1.337 | 100 | 20.0 | 9.0 | 12.0 | 16.00 | 6 | |
| FPS FORMING G1/4 | 13.16 | 1.337 | 100 | 20.0 | 9.0 | 11.0 | 12.50 | 5 | |
| FPS FORMING G1/8 | 9.73 | 90 | 90 | 22.0 | 5.5 | 7.0 | 9.25 | 5 | |
| FPS FORMING UNF5/16-24 2BX | 7.93 | 1.058 | 90 | 20.0 | 35 | 6.2 | 8.0 | 7.45 | 5 |
| FPS FORMING UNF1/4-28 2BX | 6.35 | 0.907 | 80 | 17.0 | 30 | 5.5 | 7.0 | 5.95 | 5 |
| FPS FORMING UNF10-32 2BX | 4.83 | 0.794 | 70 | 15.0 | 25 | 4.9 | 6.0 | 4.45 | 5 |
| FPS FORMING UNC5/16-18 2BX | 7.94 | 1.411 | 90 | 20.0 | 35 | 6.2 | 8.0 | 7.30 | 5 |
| FPS FORMING UNC1/4-20 2BX | 6.35 | 1.270 | 80 | 17.0 | 30 | 5.5 | 7.0 | 5.75 | 5 |
