| Title | Specification | Brand | Coding |

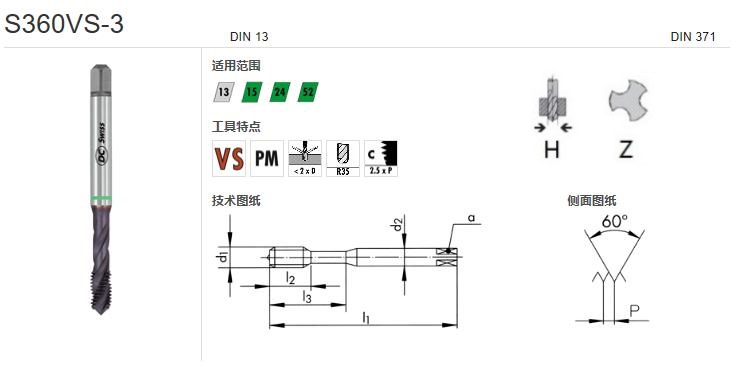

| S360VS-3 EG UNF10-32 3B | S360VS-3 EG UNF10-32 3B | 瑞士DC | 111811 |
| d1 | P | l1 | l2 | l3 | a | d2 | H | Z |
| 5.85 | 0.794 | 80 | 11.0 | 30 | 4.9 | 6.0 | 5.10 | 3 |
| name | d1 | P | l1 | l2 | l3 | a | d2 | H | Z |
| S320VS-4 EG UNF10-32 3B | 5.85 | 0.794 | 80 | 17.0 | 30 | 4.9 | 6.0 | 5.10 | 3 |
| S460VS-3 UNF7/16-20 2B | |||||||||
| S460VS-3 UNF(J)7/16-20 3B | 11.11 | 1.270 | 100 | 14.0 | 6.2 | 8.0 | 10.00 | 3 | |
| S360VS-3 UNF(J)3/8-24 3B | 9.52 | 24 | 100 | 14.0 | 39 | 8.0 | 10.0 | 8.60 | 3 |
| S360VS-3 UNF(J)5/16-24 3B | 7.93 | 24 | 90 | 12.5 | 35 | 6.2 | 8.0 | 7.00 | 3 |
| S360VS-3 UNF(J)1/4-28 3B | 6.35 | 28 | 80 | 11.0 | 30 | 5.5 | 7.0 | 5.55 | 3 |
