| Title | Specification | Brand | Coding |

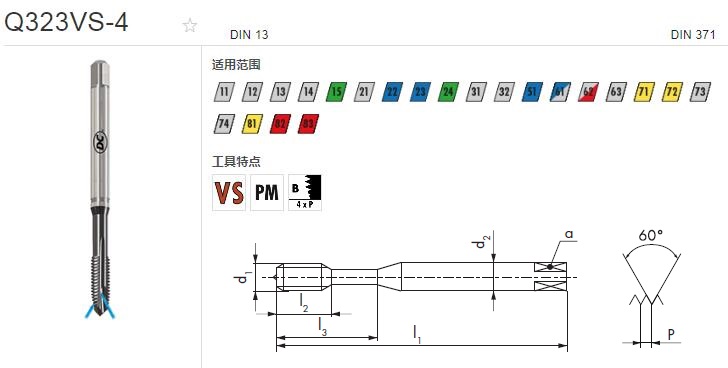

| Q323VS-4 UNF3/8-24 2B | DC | 197634 |
| d1 | P | l1 | l2 | l3 | a | d2 | H | Z |
| 9.53 | 1.058 | 100.0 | 22.0 | 39 | 8.0 | 10.00 | 8.50 | 3 |
| name | d1 | P | l1 | l2 | l3 | a | d2 | H | Z |
| Q463VS-3 G1/2 | 20.96 | 1.814 | 125.0 | 20.0 | 12.0 | 16.00 | 18.90 | 4 | |
| Q463VS-3 G3/8 | 16.66 | 1.337 | 100.0 | 14.0 | 9.0 | 12.00 | 15.20 | 4 | |
| Q463VS-3 G1/4 | 13.16 | 1.337 | 100.0 | 14.0 | 9.0 | 11.00 | 11.60 | 3 | |
| Q463VS-3 G1/8 | 9.73 | 0.907 | 90.0 | 14.0 | 5.5 | 7.00 | 8.75 | 3 | |
| Q460VS-3 G1/2 | 20.96 | 1.814 | 125.0 | 20.0 | 12.0 | 16.00 | 18.90 | 4 | |
| Q460VS-3 G3/8 | 16.66 | 1.337 | 100.0 | 14.0 | 9.0 | 12.00 | 15.20 | 4 | |
| Q460VS-3 G1/4 | 13.16 | 1.337 | 100.0 | 14.0 | 9.0 | 11.00 | 11.60 | 3 | |
| Q460VS-3 G1/8 | 9.73 | 0.907 | 90.0 | 14.0 | 5.5 | 7.00 | 8.75 | 3 | |
| Q423VS-4 G1/2 | 20.96 | 1.814 | 125.0 | 22.0 | 12.0 | 16.00 | 18.90 | 4 |
