| Title | Specification | Brand | Coding |
| Q463VS-3 UNF3/4-16 2B | 瑞士DC | 197644 |

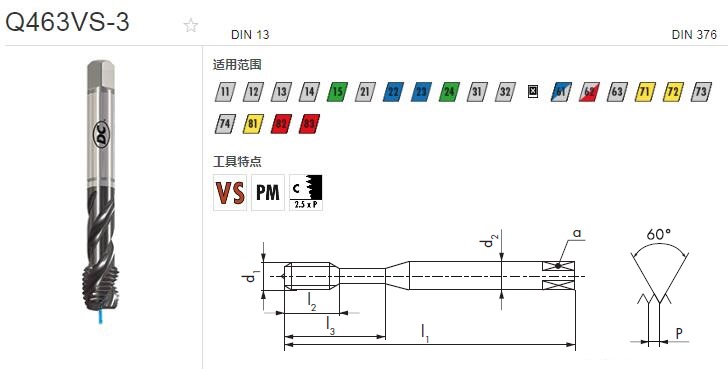

| d1 | P | l1 | l2 | l3 | a | d2 | H | Z |
| 19.05 | 1.588 | 125.0 | 18.0 | 11.0 | 14.00 | 17.50 | 4 |
| name | d1 | P | l1 | l2 | l3 | a | d2 | H | Z |
| Q463VS-3 G1/2 | 20.96 | 1.814 | 125.0 | 20.0 | 12.0 | 16.00 | 18.90 | 4 | |
| Q463VS-3 G3/8 | 16.66 | 1.337 | 100.0 | 14.0 | 9.0 | 12.00 | 15.20 | 4 | |
| Q463VS-3 G1/4 | 13.16 | 1.337 | 100.0 | 14.0 | 9.0 | 11.00 | 11.60 | 3 | |
| Q463VS-3 G1/8 | 9.73 | 0.907 | 90.0 | 14.0 | 5.5 | 7.00 | 8.75 | 3 | |
| Q460VS-3 G1/2 | 20.96 | 1.814 | 125.0 | 20.0 | 12.0 | 16.00 | 18.90 | 4 | |
| Q460VS-3 G3/8 | 16.66 | 1.337 | 100.0 | 14.0 | 9.0 | 12.00 | 15.20 | 4 | |
| Q460VS-3 G1/4 | 13.16 | 1.337 | 100.0 | 14.0 | 9.0 | 11.00 | 11.60 | 3 | |
| Q460VS-3 G1/8 | 9.73 | 0.907 | 90.0 | 14.0 | 5.5 | 7.00 | 8.75 | 3 | |
| Q423VS-4 G1/2 | 20.96 | 1.814 | 125.0 | 22.0 | 12.0 | 16.00 | 18.90 | 4 |
