| Title | Specification | Brand | Coding |
| Ø15,0 x 130 | Ø15,0 x 130( M 9 / M 12 ) | 德国 | 10020009 |

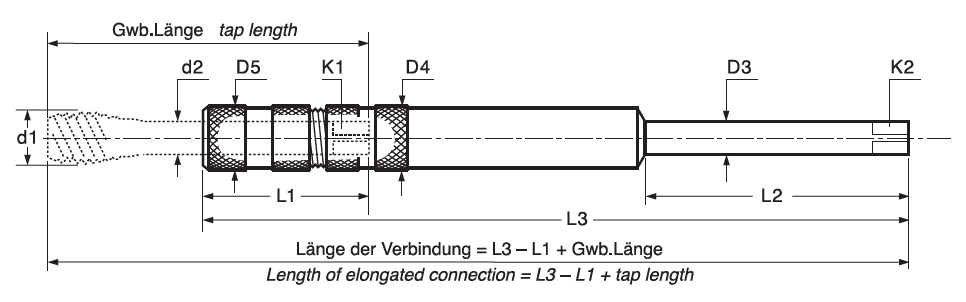

| Order No. | DIN371-d1 | DIN376-d1 | Ø d2 | K1 | L1 | Ø D3 | K2 | Ø D4/D5 | L2 | L3 |
| 10020009 | M 9 | M 12 | 9,0 | 7,0 | 31 | 9,0 | 7,0 | 15,0 | 60 | 130 |
| name | Order No. | DIN371-d1 | DIN376-d1 | Ø d2 | K1 | L1 | Ø D3 | K2 | Ø D4/D5 | L2 | L3 |
| Ø40,0 x 330 IKZ ( M36 ) | 10020336 | - | M 36 | 28,0 | 22,0 | 58 | 28,0 | 22,0 | 40,0 | 100 | 330 |
| Ø35,0 x 330 IKZ ( M33 ) | 10020333 | - | M 35 | 25,0 | 20,0 | 56 | 25,0 | 20,0 | 35,0 | 100 | 330 |
| Ø30,0 x 330 IKZ ( M30 ) | 10020330 | - | M 30 | 22,0 | 18,0 | 55 | 22,0 | 18,0 | 30,0 | 100 | 330 |
| Ø28,0 x 330 IKZ ( M27 ) | 10020327 | - | M 27 | 20,0 | 16,0 | 52 | 20,0 | 16,0 | 28,0 | 100 | 330 |
| Ø26,0 x 330 IKZ ( M22 - M24 ) | 10020322 | - | M22 - M24 | 18,0 | 14,5 | 47 | 18,0 | 14,5 | 26,0 | 100 | 330 |
| Ø22,0 x 330 IKZ ( M20 ) | 10020320 | - | M 20 | 16,0 | 12,0 | 46 | 16,0 | 12,0 | 22,0 | 90 | 330 |
| Ø22,0 x 330 IKZ ( M18 ) | 10020318 | - | M 18 | 14,0 | 11,0 | 46 | 14,0 | 11,0 | 22,0 | 90 | 330 |
| Ø18,0 x 230 IKZ ( M16 ) | 10020316 | - | M 16 | 12,0 | 9,0 | 36 | 12,0 | 9,0 | 18,0 | 90 | 230 |
| Ø18,0 x 230 IKZ ( M14 ) | 10020314 | - | M 14 | 11,0 | 9,0 | 36 | 11,0 | 9,0 | 18,0 | 90 | 230 |
