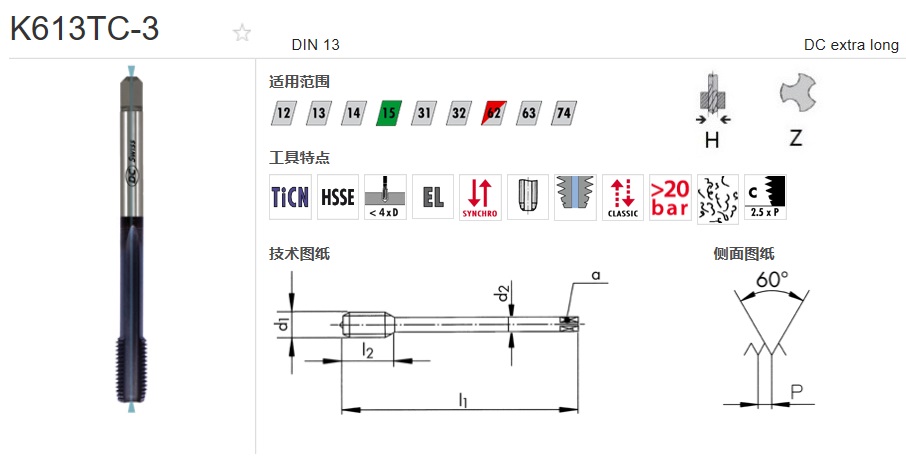

| Title | Specification | Brand | Coding |
| M12 K613TC-3 | K613TC-3 M12 6HX | 瑞士DC | 167982 |
| d1 | P | l1 | l2 | l3 | a | d2 | H | Z | |
| M12 | 1.75 | 140 | 24.0 | 7.0 | 9.0 | 10.20 | 3 | 60 |
| name | d1 | P | l1 | l2 | l3 | a | d2 | H | Z | |
| K613TC-3 M42 6HX | M42 | 4.50 | 355 | 55.0 | 24.0 | 32.0 | 37.50 | 6 | 210 | |
| M20x1.5 6HX K413TC-3 | M20x1.5 | 1.50 | 140 | 36.0 | 12.0 | 16.0 | 18.50 | 5 | 70 | |
| M16x1.5 6HX K413TC-3 | M16x1.5 | 1.50 | 110 | 30.0 | 9.0 | 12.0 | 14.50 | 3 | 56 | |
| M14x1.5 6HX K413TC-3 | M14x1.5 | 1.50 | 110 | 28.0 | 9.0 | 11.0 | 12.50 | 3 | 49 | |
| M12x1.5 6HX K413TC-3 | M12x1.5 | 1.50 | 110 | 24.0 | 7.0 | 9.0 | 10.50 | 3 | 42 | |
| M12x1.25 6HX K413TC-3 | M12x1.25 | 1.25 | 110 | 24.0 | 7.0 | 9.0 | 10.80 | 3 | 42 | |
| M12x1.0 6HX K413TC-3 | M12x1.0 | 1.00 | 110 | 24.0 | 7.0 | 9.0 | 11.00 | 3 | 42 | |
| M10x1 6HX K313TC-3 | M10x1.0 | 1.00 | 100 | 22.0 | 39 | 8.0 | 10.0 | 9.00 | 3 | 37 |
| M24 K613VS-3 | M24 | 3.00 | 200 | 39.0 | 14.5 | 18.0 | 21.00 | 5 | 120 |
