| Title | Specification | Brand | Coding |

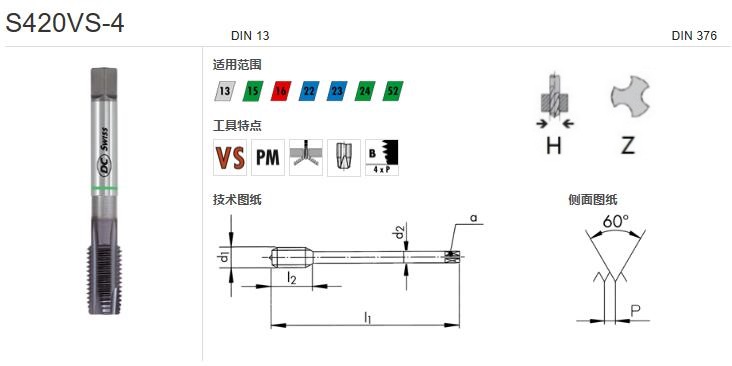

| S420VS-4 M12 6HX | S420VS-4 M12 6HX | 瑞士DC | 111602 |
| d1 | P | l1 | l2 | l3 | a | d2 | H | Z |
| M12 | 1.75 | 110 | 24.0 | 7.0 | 9.0 | 10.20 | 4 |
| name | d1 | P | l1 | l2 | l3 | a | d2 | H | Z |
| S360VS-3 EG UNF10-32 3B | 5.85 | 0.794 | 80 | 11.0 | 30 | 4.9 | 6.0 | 5.10 | 3 |
| S320VS-4 EG UNF10-32 3B | 5.85 | 0.794 | 80 | 17.0 | 30 | 4.9 | 6.0 | 5.10 | 3 |
| S460VS-3 UNF7/16-20 2B | |||||||||
| S460VS-3 UNF(J)7/16-20 3B | 11.11 | 1.270 | 100 | 14.0 | 6.2 | 8.0 | 10.00 | 3 | |
| S360VS-3 UNF(J)3/8-24 3B | 9.52 | 24 | 100 | 14.0 | 39 | 8.0 | 10.0 | 8.60 | 3 |
| S360VS-3 UNF(J)5/16-24 3B | 7.93 | 24 | 90 | 12.5 | 35 | 6.2 | 8.0 | 7.00 | 3 |
